Salesforce

Empower your agents to query, create, and manage CRM data directly through Salesforce.

This guide will walk you through retrieving your Salesforce security token, configuring the SVAHNAR tool, and connecting your org.

💡 Core Concepts

To configure this tool effectively, you need to understand the underlying capabilities, the SOQL query model, and the parameter contract.

1. What can this tool do?

The Salesforce tool interacts with the Salesforce REST API to perform schema discovery, SOQL-based querying, and full CRUD operations across any standard or custom Salesforce object.

Operation	Description
list_objects	List all available Salesforce objects in the instance (standard + custom).
describe	Retrieve the full schema of a specific object — all field names, types, and constraints.
query	Execute a SOQL query to retrieve records with filters, field selection, and limits.
create	Create a new record in a specified Salesforce object.
update	Modify specific fields on an existing record by its record ID.
delete	Permanently delete a record from a specified object by its record ID.

2. Authentication

This tool uses Salesforce Username-Password Authentication with a Security Token — no Connected App, no OAuth flow, no client_id or client_secret required.

Credential	Description
username	Your Salesforce login email.
password	Your Salesforce account password.
security_token	A token appended to your password for API authentication. Retrieved from Salesforce account settings.
domain	Your Salesforce instance domain — login for standard orgs, test for sandboxes.

• No OAuth flow: Credentials are stored statically in SVAHNAR Key Vault and resolved at runtime. No browser-based consent screen needed.
• Maintenance: If you change your Salesforce password, Salesforce automatically invalidates your security token and emails you a new one. Update both password and security_token in SVAHNAR Key Vault whenever you reset your password.

caution

The security token is separate from your password and is not the same as your MFA code. It is a permanent token tied to your account — until you reset your password, which rotates it automatically.

3. The SOQL Query Model

Unlike SQL, SOQL (Salesforce Object Query Language) queries a single object at a time and requires you to explicitly name every field you want returned. There is no SELECT *.

-- Correct: explicit field list
SELECT Id, Name, Email, Phone FROM Contact WHERE AccountId = '001XXXXXXXXXXXXXXX' LIMIT 10

-- Correct: filter with string comparison
SELECT Id, Name, Amount FROM Opportunity WHERE StageName = 'Closed Won' LIMIT 20

tip

Always call describe on an object before writing a query — it gives you the exact API field names, which are case-sensitive and often differ from their UI labels (e.g., LastModifiedDate, not Last Modified Date).

4. Operation Parameter Contract

Parameter	Required When	Description
operation	Always	One of: query, describe, list_objects, create, update, delete
query	query	A valid SOQL query string.
object_name	describe, create, update, delete	API name of the Salesforce object (e.g., Account, Contact, Lead).
record_data	create, update	Dict of field-value pairs to write (e.g., {"LastName": "Doe", "Email": "doe@example.com"}).
record_id	update, delete	The Salesforce record ID (e.g., 003XXXXXXXXXXXXXXX).

caution

delete is permanent in Salesforce — records go to the Recycle Bin and are recoverable for 15 days, after which they are purged forever. Always confirm record IDs via query before deleting.

---

🔑 Prerequisites

Before configuring the tool in SVAHNAR, you need your Salesforce login credentials and a Security Token for your account.

Get Your Salesforce Security Token

1. Log in to your Salesforce account.
2. Click your profile avatar (top-right) → Settings.

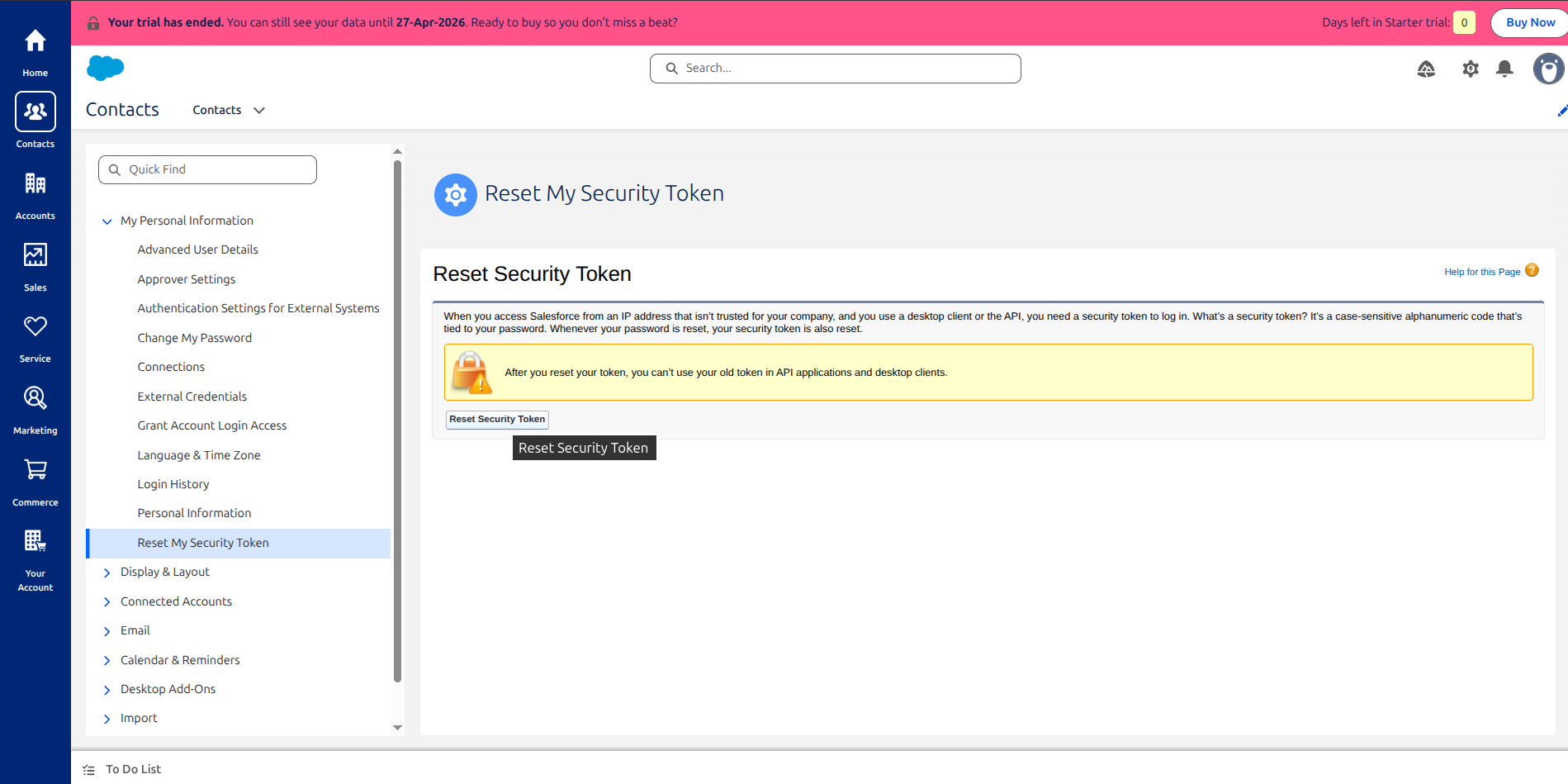

3. In the left sidebar, go to My Personal Information → Reset My Security Token.
4. Click Reset Security Token. Salesforce will email the token to your registered email address.
5. Copy the token from the email.

note

If you have never reset your security token, Salesforce may have emailed it to you when your account was first created. Check your inbox for an email with subject "Your new Salesforce security token". If you cannot find it, follow the reset steps above.

caution

Resetting your password in Salesforce automatically invalidates your current security token and generates a new one — Salesforce emails the new token to you. Whenever you change your Salesforce password, update security_token in SVAHNAR Key Vault immediately.

Identify Your Domain

The domain field tells the tool which Salesforce environment to connect to:

Environment	domain value
Production / Developer org	login
Sandbox	test
Custom domain (My Domain)	Your custom domain string (e.g., mycompany)

tip

If you are unsure, use login for production orgs. Use test for sandboxes created under Setup → Sandboxes.

Verify API Access Is Enabled

1. In Salesforce Setup, search for Profiles → open the profile used by your API user.
2. Ensure API Enabled is checked under Administrative Permissions.

note

In enterprise Salesforce instances, API access may be restricted by your org's administrator. If you receive INSUFFICIENT_ACCESS errors, contact your Salesforce admin to enable API access for your profile.

---

⚙️ Configuration Steps

Add the Tool in SVAHNAR

1. Open your SVAHNAR Agent Configuration.

2. Add the Salesforce tool and enter your credentials:

   • username — your Salesforce login email
   • password — your Salesforce account password
   • security_token — the token from the reset email
   • domain — login for production, test for sandbox

3. Save the configuration.

Verify the Connection

To confirm your credentials are working:

1. Trigger a test agent run using the list_objects operation:

{
  "operation": "list_objects"
}

2. A valid response will return a list of all Salesforce objects in your org (e.g., Account, Contact, Lead, Opportunity).
3. If you receive an INVALID_LOGIN error, verify your username, password, and security_token are all correct and up to date.
4. If you receive INSUFFICIENT_ACCESS, your user profile does not have API access enabled — see Prerequisites Step 3.

---

📚 Practical Recipes (Examples)

Recipe 1: CRM Query & Enrichment Agent

Use Case: An agent that queries Salesforce for specific records and updates them with enriched data.

create_vertical_agent_network:
  agent-1:
    agent_name: crm_enrichment_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: Salesforce
          config:
            username: ${salesforce_username}
            password: ${salesforce_password}
            security_token: ${salesforce_security_token}
            domain: login
    agent_function:
      - You are a CRM data enrichment assistant.
      - First call 'describe' on the 'Contact' object to confirm exact field names before querying.
      - Use 'query' with a SOQL statement to retrieve contacts missing a phone number — e.g., SELECT Id, FirstName, LastName, Email FROM Contact WHERE Phone = NULL LIMIT 50.
      - For each contact where enrichment data is available, use 'update' with the record_id and the new field values in record_data.
      - Report a summary of how many records were updated and which ones were skipped.
    incoming_edge:
      - Start
    outgoing_edge: []

---

Recipe 2: Lead Management Agent

Use Case: An agent that creates new leads from inbound data and tracks their pipeline stage.

create_vertical_agent_network:
  agent-1:
    agent_name: lead_management_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: Salesforce
          config:
            username: ${salesforce_username}
            password: ${salesforce_password}
            security_token: ${salesforce_security_token}
            domain: login
    agent_function:
      - You are a lead management assistant.
      - Call 'describe' on the 'Lead' object first to verify required fields and valid picklist values (e.g., LeadSource, Status).
      - Use 'create' with object_name 'Lead' and record_data containing FirstName, LastName, Email, Company, and LeadSource to add new inbound leads.
      - Use 'query' to retrieve leads by status — e.g., SELECT Id, Name, Status FROM Lead WHERE Status = 'Open - Not Contacted' LIMIT 20.
      - Use 'update' to advance lead status as they progress through the pipeline.
    incoming_edge:
      - Start
    outgoing_edge: []

---

Recipe 3: Schema Explorer Agent

Use Case: An agent that maps your Salesforce instance's object model — useful for onboarding, audits, or building downstream integrations.

create_vertical_agent_network:
  agent-1:
    agent_name: schema_explorer_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: Salesforce
          config:
            username: ${salesforce_username}
            password: ${salesforce_password}
            security_token: ${salesforce_security_token}
            domain: login
    agent_function:
      - You are a Salesforce schema analyst.
      - Use 'list_objects' to retrieve all available objects in the org.
      - For any object the user asks about, use 'describe' to retrieve its full field schema — names, types, required status, and picklist options.
      - Present the schema in a clean, readable format and highlight required fields and any custom fields (identified by '__c' suffix in their API name).
    incoming_edge:
      - Start
    outgoing_edge: []

💡 Tip: SVAHNAR Key Vault

Never hardcode your password or security_token in plain text files. Use SVAHNAR Key Vault references (e.g., ${salesforce_password}, ${salesforce_security_token}) to keep credentials secure. Remember — when you reset your Salesforce password, both password and security_token must be updated in Key Vault simultaneously.

---

🚑 Troubleshooting

• INVALID_LOGIN or 401 Unauthorized

  • Your username, password, or security_token is incorrect or out of date.
  • If you recently changed your Salesforce password, your security token was automatically rotated — check your email for the new token and update both password and security_token in SVAHNAR Key Vault.
  • Verify the domain is correct — login for production, test for sandbox. Using the wrong domain causes login failures even with valid credentials.

• INSUFFICIENT_ACCESS or 403 Forbidden

  • Your Salesforce user profile does not have API Enabled permission.
  • Contact your Salesforce administrator to enable API access for your profile under Setup → Profiles → Administrative Permissions.

• SOQL Query Errors (MALFORMED_QUERY)

  • Always call describe on the target object first to get exact API field names — they are case-sensitive.
  • SOQL does not support SELECT *. You must explicitly list every field you need.
  • String values in SOQL filters must be single-quoted: WHERE Name = 'Acme Corp', not double-quoted.

• create or update Fails with REQUIRED_FIELD_MISSING

  • Call describe on the object to identify required fields (nillable: false, createable: true).
  • Common required fields: Contact requires LastName, Lead requires LastName and Company.

• delete Returns ENTITY_IS_DELETED

  • The record was already deleted. Check the Salesforce Recycle Bin to restore it — records are recoverable for 15 days.

• Custom Objects Not Appearing in list_objects

  • Custom objects have an __c suffix in their API name (e.g., Invoice__c). They appear in list_objects — filter for __c to identify them.
  • If a custom object is missing entirely, verify your user profile has read access under Setup → Object Manager → [Object] → Security.

• Sandbox Connection Failing

  • Ensure domain is set to test for sandboxes — not login. Sandboxes also have their own separate security tokens. Reset your sandbox security token from within the sandbox org, not production.
