HubSpot

Empower your agents to manage contacts, companies, deals, and tickets directly through HubSpot CRM.

This guide will walk you through generating your HubSpot Private App token, configuring the SVAHNAR tool, and connecting your CRM workspace.

💡 Core Concepts

To configure this tool effectively, you need to understand the underlying capabilities and the data model.

1. What can this tool do?

The HubSpot tool interacts with the HubSpot CRM API v3/v4 to perform full CRUD, filter-based search, and association management across four core object types.

Supported Object Types: contacts | companies | deals | tickets

Operation	Description
`create`	Create a new CRM record (contact, company, deal, or ticket).
`get`	Fetch a single record by its HubSpot ID with optional property selection.
`update`	Partially update specific fields on an existing record.
`delete`	Soft-delete (archive) a record. Recoverable in HubSpot UI for 90 days.
`search`	Filter-based search across any object type with sort and limit support.
`associate`	Link two CRM records together (e.g., contact ↔ deal).
`get_associations`	Get all records of a given type linked to a specific record.
`remove_association`	Remove a link between two records without deleting either.

2. Authentication

This tool uses a HubSpot Private App Token (Bearer token).

Token Type: Bearer — passed as Authorization: Bearer <token> on every request.
No OAuth flow required: Unlike Outlook or Notion, HubSpot Private Apps do not require a user-facing OAuth popup. You generate the token once in the HubSpot portal and paste it into SVAHNAR.
Maintenance: Private App tokens do not expire automatically, but they are invalidated if the app is deleted or the token is rotated manually. Keep your token stored in SVAHNAR Key Vault.

3. Association Model

HubSpot records are linked via associations. The following bidirectional pairs are supported:

From	To
`contacts`	`companies`
`contacts`	`deals`
`contacts`	`tickets`
`companies`	`deals`
`companies`	`tickets`
`deals`	`tickets`

Always associate records after creating them to maintain a connected CRM graph that HubSpot reports and pipelines can act on.

🔑 Prerequisites

Before configuring the tool in SVAHNAR, you need to create a HubSpot Private App and generate an access token.

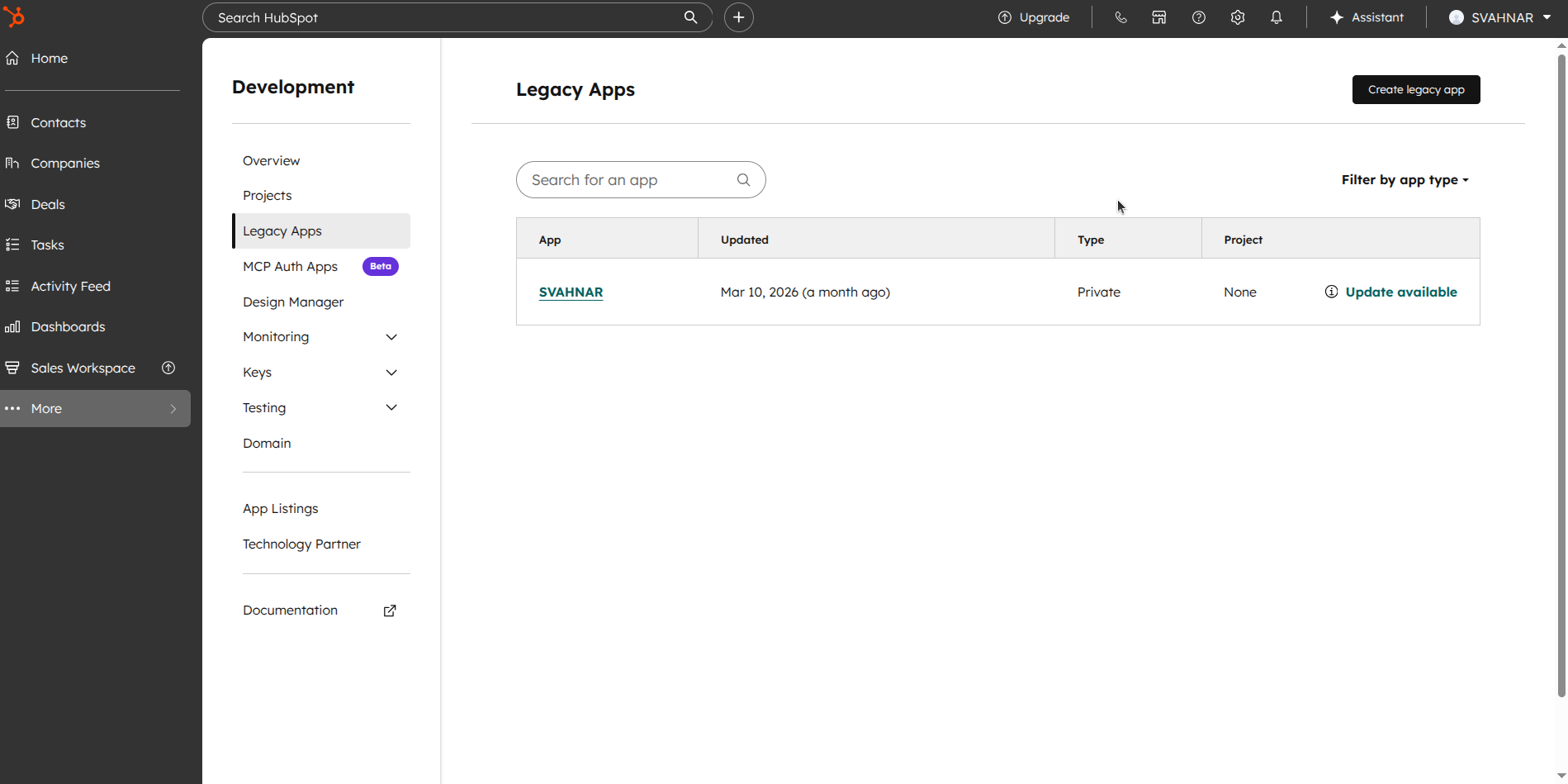

Create a HubSpot Private App

Log in to HubSpot and go to your account.
Navigate to Settings (⚙️ top-right) → Integrations → Private Apps.
Click Create a private app.
Give it a name (e.g., SVAHNAR Agent) and optionally add a description and logo.

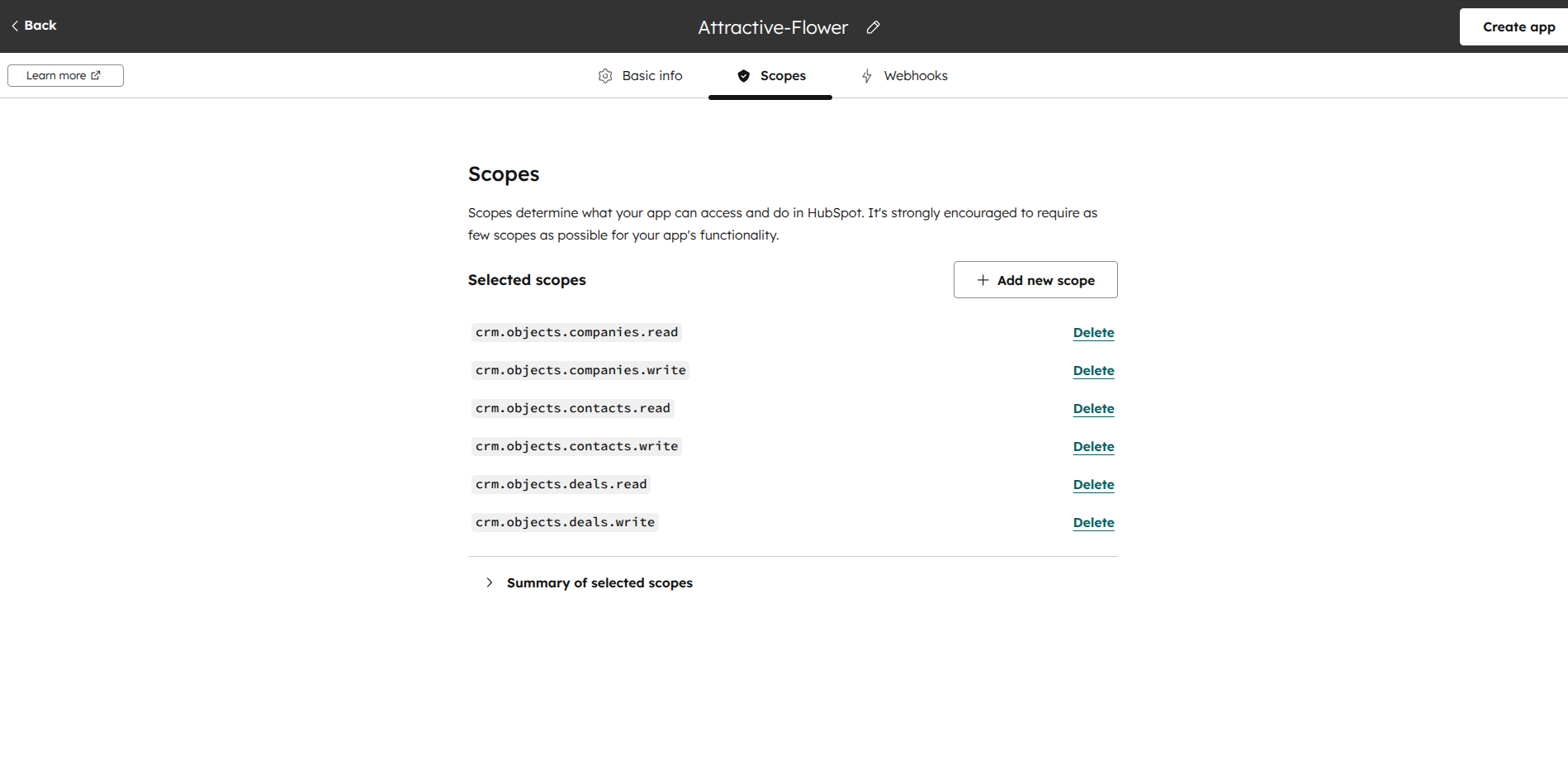

Configure Scopes

Go to the Scopes tab of your private app.
Add the following scopes based on what your agent needs:

CRM Objects (Contacts, Companies, Deals, Tickets):
- crm.objects.contacts.read
- crm.objects.contacts.write
- crm.objects.companies.read
- crm.objects.companies.write
- crm.objects.deals.read
- crm.objects.deals.write
- crm.objects.tickets.read
- crm.objects.tickets.write
Associations:
- crm.objects.associations.read
- crm.objects.associations.write

tip

If you only need read-only access (e.g., for a reporting agent), you can safely omit all write scopes.

Generate & Copy the Access Token

Click Create app (or Update if editing).
On the confirmation dialog, click Continue creating.
You will land on your app's detail page. Click Show token under the Access token section.
Crucial: Copy the token immediately and store it securely — it is shown only once per rotation.

caution

Never commit this token to version control or hardcode it in config files. Use SVAHNAR Key Vault (${hubspot_token}) to reference it safely.

⚙️ Configuration Steps

Add the Tool in SVAHNAR

Open your SVAHNAR Agent Configuration.
Add the HubSpot tool and enter your Private App credentials:
- access_token — the token generated from your HubSpot Private App
Save the configuration.

Verify the Connection

There is no OAuth popup for HubSpot — the connection is live as soon as you save a valid token. To verify:

Trigger a test agent run using the search task on contacts with an empty filter.
If you receive a valid response (even { total: 0, results: [] }), your token is working correctly.
If you receive a 401 Unauthorized, your token is invalid or was not copied correctly — regenerate it from the HubSpot portal.

📚 Practical Recipes (Examples)

Recipe 1: Inbound Lead Pipeline Agent

Use Case: An agent that captures a new lead, creates a deal, and fully associates the CRM graph in one shot.

create_vertical_agent_network:
  agent-1:
    agent_name: inbound_lead_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: HubSpot
          config:
            access_token: ${hubspot_token}
    agent_function:
      - You are a CRM automation agent.
      - When a new lead comes in, use 'create' to create a contact with their name, email, and phone.
      - Use 'create' again to create a deal linked to their company with the appropriate pipeline and stage.
      - Use 'associate' to link the contact to the deal, the contact to the company, and the deal to the company.
      - Always confirm each step before proceeding to the next.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 2: Deal Pipeline Update Agent

Use Case: An agent that queries deals at a specific stage and moves them forward in the pipeline.

create_vertical_agent_network:
  agent-1:
    agent_name: deal_pipeline_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: HubSpot
          config:
            access_token: ${hubspot_token}
    agent_function:
      - You are a sales pipeline manager.
      - Use 'search' on 'deals' to find all records where dealstage equals 'appointmentscheduled'.
      - For each deal returned, use 'update' to move the stage to 'qualifiedtobuy'.
      - Report a summary of all deals updated with their IDs and amounts.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 3: Support Escalation Agent

Use Case: An agent that creates a support ticket and associates it to the relevant contact and deal.

create_vertical_agent_network:
  agent-1:
    agent_name: support_escalation_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: HubSpot
          config:
            access_token: ${hubspot_token}
    agent_function:
      - You are a support escalation assistant.
      - Use 'search' on 'contacts' with an EQ filter on email to find the customer's contact ID.
      - Use 'create' on 'tickets' with subject, content, and hs_ticket_priority set to HIGH.
      - Use 'associate' to link the ticket to the contact and to any open deal found via 'get_associations'.
    incoming_edge:
      - Start
    outgoing_edge: []

💡 Tip: SVAHNAR Key Vault

Never hardcode your access_token in plain text files. Use SVAHNAR Key Vault references (e.g., ${hubspot_token}) to keep credentials secure.

🚑 Troubleshooting

401 Unauthorized
- Your Private App token is invalid, expired after manual rotation, or was not copied correctly.
- Go to HubSpot → Settings → Private Apps, rotate the token, and update it in SVAHNAR Key Vault.
403 Forbidden on Specific Operations
- The scope required for that operation was not added when creating the Private App.
- Go to your Private App settings, add the missing scope (e.g., crm.objects.deals.write), and click Update app to rotate to a new token automatically.
search Returns No Results
- Verify the propertyName values in your filters match HubSpot's internal field names exactly (e.g., hs_ticket_priority, not priority).
- Filter operators are case-sensitive — use EQ, GT, CONTAINS_TOKEN, not lowercase variants.
associate Fails with Invalid Pair
- Check the Association Model table above — not all object-type combinations are supported.
- Ensure both from_id and to_id exist in HubSpot before attempting to associate them.
delete Did Not Remove the Record
- HubSpot delete is a soft-delete (archive) — records are not permanently removed. They are recoverable from the HubSpot UI for 90 days via CRM → Contacts/Deals → Actions → Restore.
- Permanent deletion requires manual action from within HubSpot.
