GitLab

Empower your agents to manage repositories, files, branches, issues, and merge requests directly through GitLab.

This guide will walk you through generating a GitLab Personal Access Token, configuring the SVAHNAR tool, and connecting your repository.

💡 Core Concepts

To configure this tool effectively, you need to understand the underlying capabilities, the branch model, and the query format contract.

1. What can this tool do?

The GitLab tool interacts with the GitLab API via the python-gitlab library to perform repository operations across issues, files, branches, and merge requests.

Issue Operations

Mode	Description	Query Required
`get_issues`	Fetch all open issues from the repository.	No
`get_issue`	Fetch a specific issue by number — title, body, and all comments.	Issue number as string, e.g. `"42"`
`comment_on_issue`	Add a comment to a specific issue.	`"issue_number\n\nYour comment text"`

File Operations

Mode	Description	Query Required
`read_file`	Read the contents of a file from the repository.	`"path/to/file.txt"`
`create_file`	Create a new file on the active bot branch.	`"path/to/file.txt\nFile contents here"`
`update_file`	Update file contents using OLD/NEW markers.	See Update File Format below.
`delete_file`	Delete a file from the active bot branch.	`"path/to/file.txt"`

Branch Operations

Mode	Description	Query Required
`list_branches_in_repo`	List all branches in the repository.	No
`create_branch`	Create a new branch and set it as the active bot branch.	`"new-branch-name"`
`set_active_branch`	Switch to an existing branch (equivalent to `git checkout`).	`"branch-name"`

Directory & Listing Operations

Mode	Description	Query Required
`list_files_in_main_branch`	List all files in the main/base branch.	No
`list_files_in_bot_branch`	List all files in the current active bot branch.	No
`list_files_from_directory`	List files from a specific directory in the active branch.	`"path/to/directory"`

Merge Request Operations

Mode	Description	Query Required
`create_pull_request`	Create a merge request from the bot branch into the base branch.	`"PR Title\n\nPR description body"`

2. The Two-Branch Model

This tool operates with two distinct branch concepts that you must configure clearly:

Branch	Config Key	Purpose
Base Branch	`GITLAB_BASE_BRANCH`	The protected target branch (e.g., `main`, `production`). Merge requests are opened into this branch.
Bot Branch	`GITLAB_BRANCH`	The active working branch where all file writes (`create_file`, `update_file`, `delete_file`) happen.

All write operations (create, update, delete file) always target the bot branch, never the base branch directly. When the agent's changes are ready, create_pull_request opens a merge request from the bot branch into the base branch for human review.

tip

Set GITLAB_BRANCH to a dedicated branch like svahnar-bot or agent/changes to keep agent-generated commits isolated from your main development workflow.

3. Update File Format

The update_file mode uses a structured OLD/NEW marker format. The exact content between markers is matched and replaced:

path/to/file.txt
OLD <<<<
old content to replace
>>>> OLD
NEW <<<<
new replacement content
>>>> NEW

caution

The OLD block must match the existing file content exactly — including whitespace, indentation, and line endings. If the match fails, the update will be rejected. Always call read_file first to confirm the exact content before writing an update_file query.

🔑 Prerequisites

Before configuring the tool in SVAHNAR, you need to generate a Personal Access Token from GitLab with repository access.

Generate a Personal Access Token

Log in to GitLab (or your self-hosted GitLab instance).

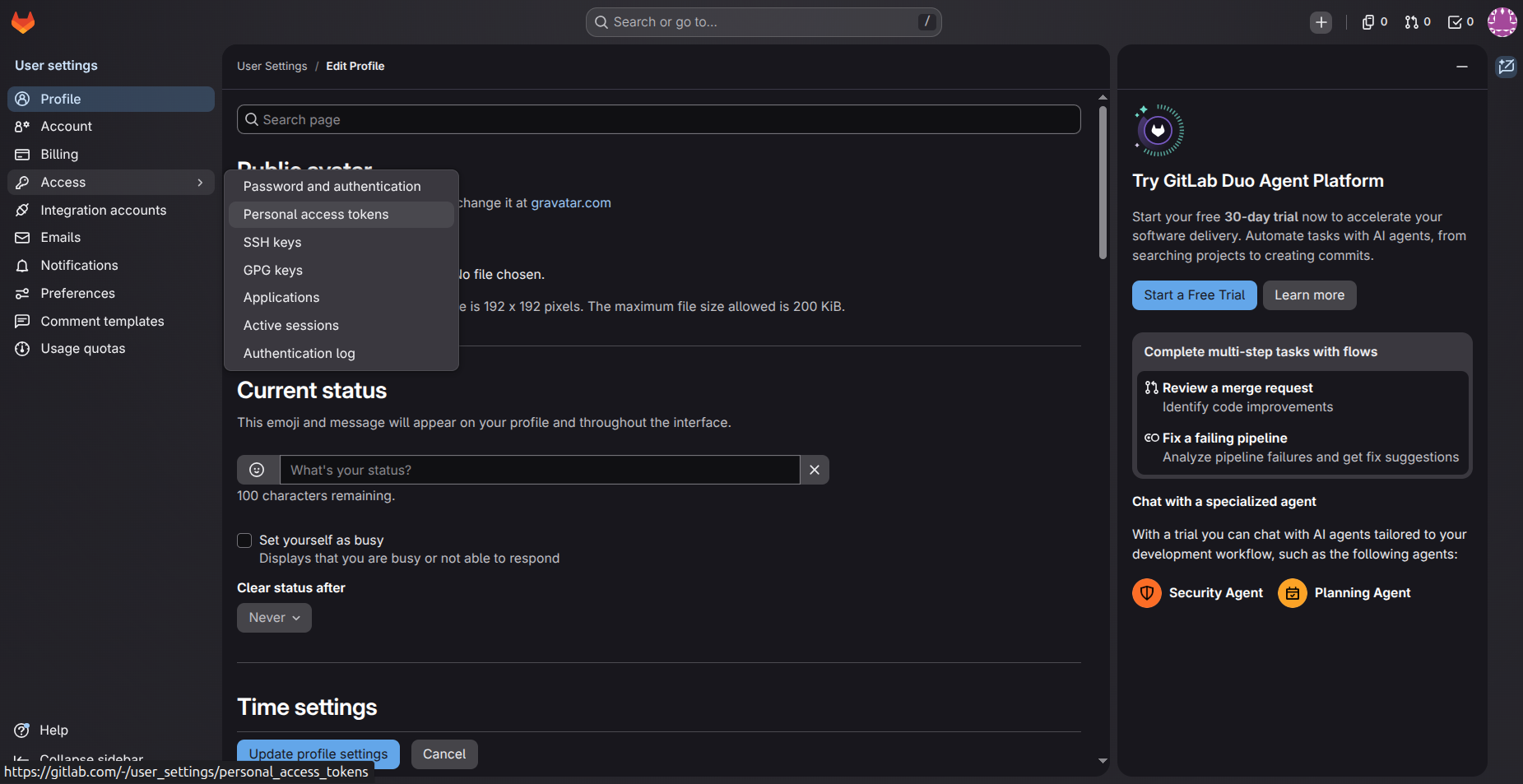

Go to your avatar (top-right) → Edit profile → Access Tokens in the left sidebar.
Click Add new token.
Fill in the details:
- Token name: SVAHNAR Agent
- Expiration date: Set to your desired expiry (or leave blank for no expiry — see the caution below).

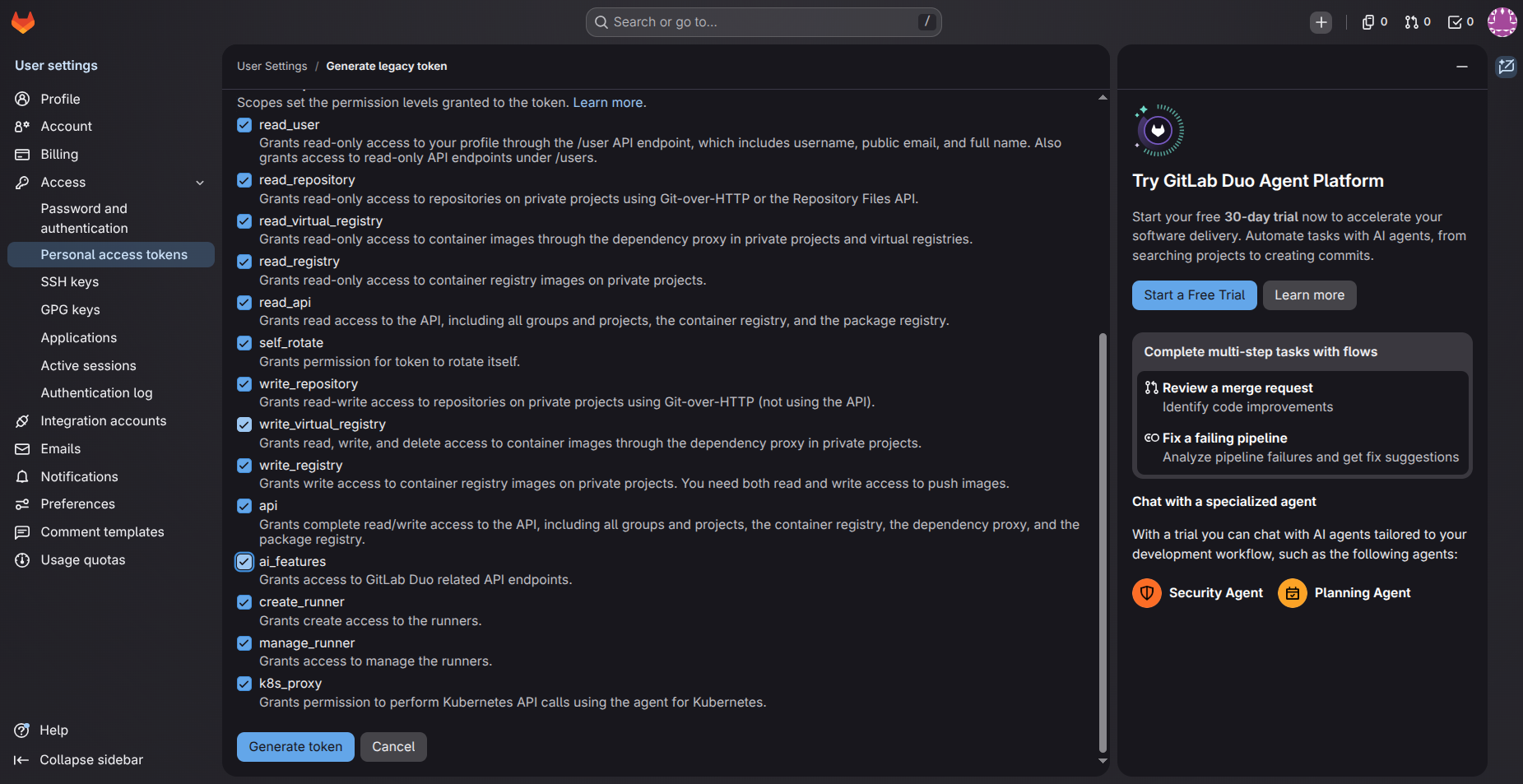

- Scopes: Select the following:
  - api — Full API access (required for all operations)
Click Create personal access token.
Crucial: Copy the token immediately — it is shown only once and cannot be retrieved again.

caution

If you set an expiration date, the token will stop working silently on that date. Plan a token rotation reminder and update SVAHNAR Key Vault accordingly. For long-running agents, consider using a Group Access Token or Project Access Token for better lifecycle management.

Note Your Repository Details

Navigate to the GitLab repository your agent will work with.
Note the repository path in the format owner/repo-name (visible in the URL — e.g., myorg/backend-service). This is your GITLAB_REPOSITORY value.
For self-hosted GitLab instances, note your instance URL (e.g., https://gitlab.mycompany.com). This is your GITLAB_URL value. For gitlab.com, this defaults automatically.

Prepare the Bot Branch

In your GitLab repository, create a dedicated working branch for the agent:

git checkout -b svahnar-bot
git push origin svahnar-bot

This branch name goes into GITLAB_BRANCH in your SVAHNAR configuration.
Set GITLAB_BASE_BRANCH to your protected branch (typically main or master).

note

You can also let the agent create its own branch at runtime using the create_branch mode — but pre-creating it ensures branch protection rules and naming conventions are applied from the start.

⚙️ Configuration Steps

Add the Tool in SVAHNAR

Open your SVAHNAR Agent Configuration.
Add the GitLab tool and enter your connection details:
- GITLAB_PERSONAL_ACCESS_TOKEN — your Personal Access Token
- GITLAB_REPOSITORY — repository path in owner/repo-name format or numeric project ID
- GITLAB_URL (optional) — your GitLab instance URL (default: https://gitlab.com)
- GITLAB_BRANCH (optional) — active bot branch for write operations (default: main)
- GITLAB_BASE_BRANCH (optional) — target branch for merge requests (default: main)
Save the configuration.

Verify the Connection

To confirm your token and repository path are correctly configured:

Trigger a test agent run using the list_branches_in_repo mode with an empty query.
A valid response will return all branches in your repository including main and your bot branch.
If you receive a 401 error, your token is invalid or expired. If you receive a 404, your GITLAB_REPOSITORY path is incorrect — double-check the owner/repo-name format.

📚 Practical Recipes (Examples)

Recipe 1: Autonomous Code Review & Issue Triage Agent

Use Case: An agent that reads open issues, fetches relevant files for context, and comments with an initial triage assessment.

create_vertical_agent_network:
  agent-1:
    agent_name: issue_triage_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: GitLab
          config:
            GITLAB_PERSONAL_ACCESS_TOKEN: ${gitlab_token}
            GITLAB_REPOSITORY: ${gitlab_repo}
            GITLAB_BRANCH: svahnar-bot
            GITLAB_BASE_BRANCH: main
    agent_function:
      - You are a code review and issue triage assistant.
      - Use 'get_issues' to fetch all open issues in the repository.
      - For each issue that appears to be a bug report, use 'get_issue' with the issue number to read the full description and existing comments.
      - If the issue references a specific file, use 'read_file' to examine the relevant code.
      - Use 'comment_on_issue' to add a structured triage comment — include reproduction steps, severity assessment, and suggested area of the codebase to investigate.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 2: Automated Documentation Writer Agent

Use Case: An agent that reads source files and writes or updates documentation on a bot branch, then raises a merge request for review.

create_vertical_agent_network:
  agent-1:
    agent_name: documentation_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: GitLab
          config:
            GITLAB_PERSONAL_ACCESS_TOKEN: ${gitlab_token}
            GITLAB_REPOSITORY: ${gitlab_repo}
            GITLAB_BRANCH: svahnar-bot
            GITLAB_BASE_BRANCH: main
    agent_function:
      - You are a technical documentation assistant.
      - Use 'list_files_in_main_branch' to discover all files in the repository.
      - Use 'read_file' to read source files the user specifies (e.g., API route handlers, model definitions).
      - If a documentation file already exists, use 'read_file' to get its current content, then use 'update_file' with the OLD/NEW marker format to patch the relevant section.
      - If no documentation file exists yet, use 'create_file' to write a new one under the docs/ directory on the bot branch.
      - Once all documentation is written, use 'create_pull_request' with a clear title and description summarizing all changes made.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 3: Feature Branch Scaffolding Agent

Use Case: An agent that creates a new feature branch, scaffolds boilerplate files, and opens a draft merge request — all in one automated flow.

create_vertical_agent_network:
  agent-1:
    agent_name: feature_scaffolding_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: GitLab
          config:
            GITLAB_PERSONAL_ACCESS_TOKEN: ${gitlab_token}
            GITLAB_REPOSITORY: ${gitlab_repo}
            GITLAB_BASE_BRANCH: main
    agent_function:
      - You are a feature scaffolding assistant.
      - Use 'create_branch' to create a new branch with the feature name (e.g., 'feature/user-auth').
      - The newly created branch automatically becomes the active bot branch for subsequent file operations.
      - Use 'create_file' to scaffold boilerplate files — route handlers, test stubs, README sections — as requested by the user.
      - Once scaffolding is complete, use 'create_pull_request' with the feature name as title and a checklist of what was scaffolded as the description body.
    incoming_edge:
      - Start
    outgoing_edge: []

💡 Tip: SVAHNAR Key Vault

Never hardcode your GITLAB_PERSONAL_ACCESS_TOKEN in plain text files. Use SVAHNAR Key Vault references (e.g., ${gitlab_token}) to keep credentials secure. If your token has an expiration date, set a calendar reminder to rotate it and update Key Vault before it lapses.

🚑 Troubleshooting

401 Unauthorized
- Your Personal Access Token is invalid, expired, or was not copied in full.
- Go to GitLab → Edit Profile → Access Tokens, verify the token's expiry, and regenerate if needed. Update the new token in SVAHNAR Key Vault.
404 Not Found on Any Operation
- Your GITLAB_REPOSITORY value is incorrect. It must be in owner/repo-name format exactly as it appears in the GitLab URL — e.g., myorg/backend-service, not Backend Service or a partial path.
- For self-hosted instances, ensure GITLAB_URL points to the correct base URL.
update_file Fails with No Match Error
- The OLD block content did not match the current file exactly. Always call read_file immediately before constructing an update_file query — even a single extra space or different line ending will cause a mismatch.
- Copy the exact content from the read_file response into the OLD block.
Write Operations Affecting the Wrong Branch
- All file writes (create_file, update_file, delete_file) target GITLAB_BRANCH (the bot branch). If changes are appearing on the wrong branch, verify that GITLAB_BRANCH is set correctly in your tool config, and use set_active_branch to explicitly switch if needed.
create_pull_request Fails
- A merge request between the bot branch and base branch may already be open. GitLab does not allow duplicate open MRs for the same source → target pair.
- Use list_branches_in_repo to confirm the bot branch exists and has commits ahead of the base branch before attempting to create a merge request.
comment_on_issue or get_issue Returns Not Found
- Issue numbers in GitLab are project-scoped integers. Pass the number as a plain string — e.g., "42", not a URL or #42.
- Confirm the issue is open and belongs to the repository configured in GITLAB_REPOSITORY.
Self-Hosted GitLab Not Connecting
- Ensure GITLAB_URL is set to your full instance URL including protocol — e.g., https://gitlab.mycompany.com. Do not include a trailing slash.
- Verify your network allows outbound HTTPS from the SVAHNAR deployment to your GitLab instance.
