Discord

Empower your agents to send messages, read channel history, and search conversations directly through Discord.

This guide will walk you through creating a Discord Bot, inviting it to your server, and configuring the SVAHNAR tool.

💡 Core Concepts

To configure this tool effectively, you need to understand the underlying capabilities, the bot permission model, and how the tool authenticates.

1. What can this tool do?

The Discord tool interacts with the Discord REST API (not WebSocket) to send and retrieve messages from channels your bot has been invited to.

Mode	Description	`text` Required
`send`	Send a message to a specified Discord channel.	Yes — the message content to post.
`read`	Fetch the latest messages from a channel (up to 100).	No
`search`	Search for a specific string in the last 100 messages of a channel.	Yes — the text to search for.

2. Authentication

This tool uses a Discord Bot Token for authentication via the REST API.

Bot Token: A static token tied to your Discord bot application. Passed as Authorization: Bot <token> on every request.
No OAuth popup required: You generate the token once from the Discord Developer Portal and paste it into SVAHNAR. No per-user login flow needed.
Maintenance: Bot tokens do not expire automatically. They are invalidated only if you manually reset the token from the Developer Portal or if the bot application is deleted.

3. REST API vs WebSocket

Discord has two API surfaces — REST and Gateway (WebSocket). This tool uses the REST API only, which means:

✅ The agent can send and read messages on demand (polling model).
❌ The agent cannot listen for new messages in real time or react to events as they happen.

For real-time event-driven workflows (e.g., responding the moment a message arrives), a WebSocket Gateway connection would be required — outside the scope of this tool.

4. Operation Parameter Contract

Parameter	Required When	Description
`channel_id`	Always	The Discord channel ID as a string or integer.
`mode`	Optional	`send` (default) \| `read` \| `search`
`text`	`send`, `search`	Message content to post (`send`) or string to search for (`search`).
`limit`	Optional (`read` only)	Number of messages to fetch. Default: `10`, max: `100`.

🔑 Prerequisites

Before configuring the tool in SVAHNAR, you need to create a Discord Bot from the Discord Developer Portal and invite it to your server.

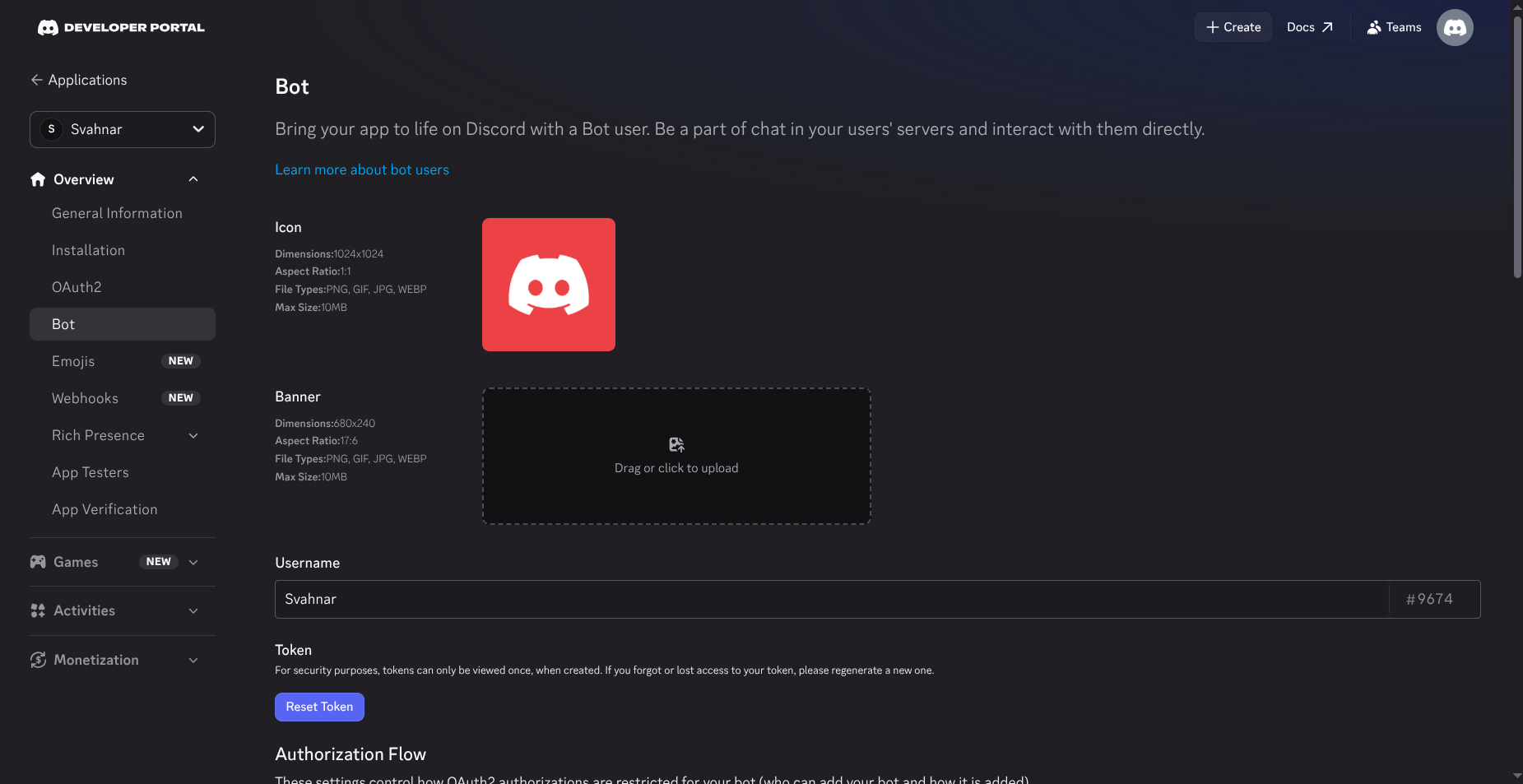

Create a Discord Application & Bot

Go to the Discord Developer Portal and log in.
Click New Application, give it a name (e.g., SVAHNAR Agent), and click Create.
In the left sidebar, go to Bot.
Click Add Bot → Yes, do it!
Under the Token section, click Reset Token, confirm, and copy the token immediately — it is shown only once.

caution

Never share or commit your Bot Token. Anyone with this token can operate your bot with full permissions. Store it in SVAHNAR Key Vault (${discord_bot_token}) and nowhere else.

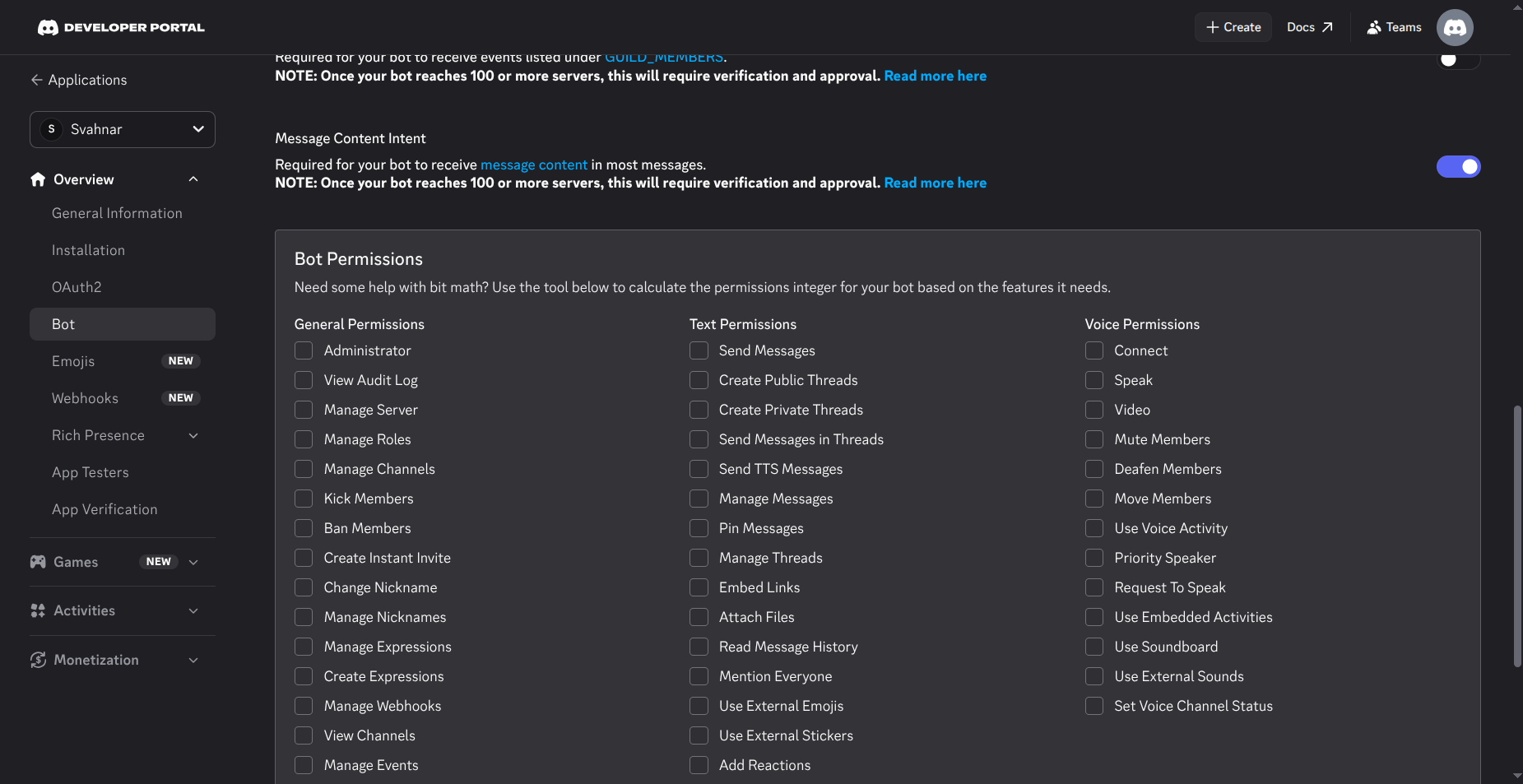

Configure Bot Permissions

In the Bot section of the Developer Portal, scroll down to Privileged Gateway Intents.
Enable Message Content Intent — required to read message content via the REST API.
Save your changes.

note

Without the Message Content Intent, the read and search modes will return messages with empty content bodies. This intent must be enabled even though this tool uses REST, not the Gateway.

Invite the Bot to Your Server

In the left sidebar, go to OAuth2 → URL Generator.
Under Scopes, select bot.
Under Bot Permissions, select:
- Read Messages / View Channels
- Send Messages
- Read Message History
Copy the generated URL and open it in your browser.
Select the target server from the dropdown and click Authorize.

tip

You must have Manage Server permission on the target Discord server to invite a bot. If you don't have this, ask your server admin to complete this step.

Get the Channel ID

In Discord, go to User Settings → Advanced → enable Developer Mode.
Right-click on any channel in your server → Copy Channel ID.
This is the channel_id value you will pass in your agent payloads.

⚙️ Configuration Steps

Add the Tool in SVAHNAR

Open your SVAHNAR Agent Configuration.
Add the Discord tool and enter your bot credentials:
- DISCORD_BOT_TOKEN — the Bot Token from the Discord Developer Portal
Save the configuration.

Verify the Connection

To confirm your bot token is valid and the bot has access to the target channel:

Trigger a test agent run using the read mode with your target channel_id and limit: 1.
A valid response will return the most recent message in that channel.
If you receive a 401 error, your token is invalid or was not copied in full.
If you receive a 403 Missing Access error, the bot has not been invited to the server or does not have permission to view that specific channel.

📚 Practical Recipes (Examples)

Recipe 1: Notification & Alerting Agent

Use Case: An agent that posts automated updates, alerts, or summaries to a Discord channel.

create_vertical_agent_network:
  agent-1:
    agent_name: discord_notifier_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: Discord
          config:
            DISCORD_BOT_TOKEN: ${discord_bot_token}
    agent_function:
      - You are a notification delivery assistant.
      - When triggered, compose a clear and concise alert message based on the event data provided.
      - Use 'send' mode with the target channel_id to post the notification to the correct Discord channel.
      - Keep messages under 2000 characters — Discord's per-message limit. If content is longer, split it into multiple 'send' calls.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 2: Channel Monitor & Search Agent

Use Case: An agent that scans a Discord channel for specific keywords and summarizes matching messages.

create_vertical_agent_network:
  agent-1:
    agent_name: channel_monitor_agent
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: Discord
          config:
            DISCORD_BOT_TOKEN: ${discord_bot_token}
    agent_function:
      - You are a channel monitoring assistant.
      - Use 'search' mode with the target channel_id and the keyword or phrase to look for in the last 100 messages.
      - Summarize all matching messages — include the author, timestamp, and relevant excerpt for each match.
      - If no matches are found, report that clearly rather than returning an empty response.
      - Use 'read' mode with a higher limit (up to 100) when the user wants a full digest of recent channel activity.
    incoming_edge:
      - Start
    outgoing_edge: []

Recipe 3: Cross-Tool — Pipeline Status Reporter Agent

Use Case: An agent that checks a data source (e.g., GitLab issues or HubSpot deals) and posts a formatted daily digest to a Discord channel.

create_vertical_agent_network:
  agent-1:
    agent_name: pipeline_status_reporter
    LLM_config:
        params:
          model: gpt-4o
    tools:
      tool_assigned:
        - name: GitLab
          config:
            GITLAB_PERSONAL_ACCESS_TOKEN: ${gitlab_token}
            GITLAB_REPOSITORY: ${gitlab_repo}
        - name: Discord
          config:
            DISCORD_BOT_TOKEN: ${discord_bot_token}
    agent_function:
      - You are a daily pipeline status reporter.
      - Use GitLab's 'get_issues' to fetch all open issues in the repository.
      - Group the issues by label or severity and compose a clean daily digest summary.
      - Use Discord's 'send' mode to post the digest to the designated engineering channel_id.
      - Keep the format consistent — use Discord markdown (bold with **text**, code blocks with `backticks`) for readability.
    incoming_edge:
      - Start
    outgoing_edge: []

💡 Tip: SVAHNAR Key Vault

Never hardcode your DISCORD_BOT_TOKEN in plain text files. Use SVAHNAR Key Vault references (e.g., ${discord_bot_token}) to keep credentials secure.

💡 Tip: Discord Markdown

Discord supports a subset of Markdown in messages sent via the API. Use these in your send payloads for readable, well-formatted notifications:

Format	Syntax
Bold	`text`
Italic	`text`
Code (inline)	`code`
Code block	```language\ncode\n```
Block quote	`> text`

🚑 Troubleshooting

401 Unauthorized
- Your DISCORD_BOT_TOKEN is invalid or was not copied in full.
- Go to Discord Developer Portal → Your App → Bot → Reset Token, copy the new token, and update it in SVAHNAR Key Vault.
403 Missing Access on read or send
- The bot has not been invited to the server, or it does not have the required permissions on that specific channel.
- Re-invite the bot using the OAuth2 URL Generator with Read Messages, Send Messages, and Read Message History scopes. Also check the channel's Edit Channel → Permissions to ensure the bot role is not explicitly denied.
read and search Return Messages with Empty Content
- The Message Content Intent is not enabled in the Developer Portal.
- Go to Developer Portal → Your App → Bot → Privileged Gateway Intents and enable Message Content Intent, then save.
search Returns No Matches
- The search mode scans only the last 100 messages in a channel. If the target message is older than the last 100, it will not be found.
- For broader historical searches, use read with limit: 100 and process the results in the agent.
send Fails with Message Too Long
- Discord enforces a 2000 character per message limit. If your agent's output exceeds this, split the content across multiple send calls.
- Structure long outputs as multiple short messages or use a code block for dense content.
Bot Not Appearing in the Server After Invite
- Confirm you selected the correct server in the OAuth invite URL flow and clicked Authorize.
- Check that the inviting account has Manage Server permission on the target server — without this, the invite silently fails.
